Junckers` Fitting Systems Range

BluBat Construction

BluBat

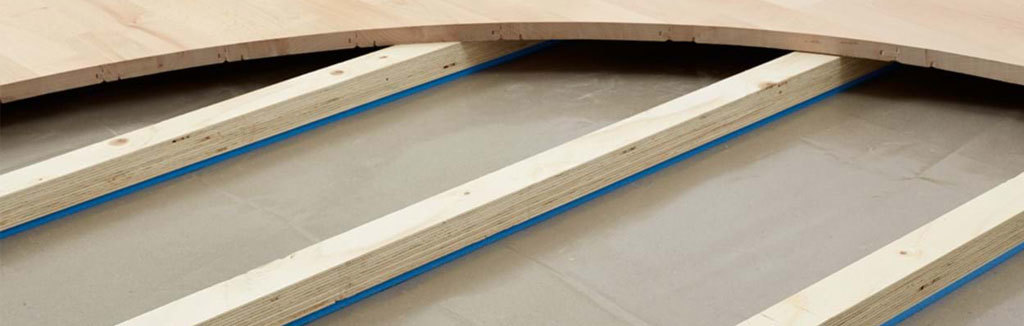

The Junckers BluBat batten system is the simplest of the Junckers undercarriage systems offering medium shock absorption and resilience at a budget cost. Fast and economical to install over a flat, level sub-floor. It conforms fully to all the requirements of BSEN14904 A3. The system comprises of a 22mm Junckers Press dried Beech board secret nailed to a kiln-dried softwood batten with a continuous layer of 9mm thick special foam to the underside.

There is a choice of 3 main thickness of batten, 31mm, 45mm or 57mm2 deep – including 9mm foam. The 45mm and 57mm deep battens are the main recommendations, the 31mm1 deep batten is ideal for underfloor heated screeds.

System Components

  • Construction height, including 22mm thick floorboard: 53mm1 67mm 79mm2
  • Installation on even sub-floor
  • 22 x 129 x 3700mm floorboards
  • Porta nail
  • BluBat batten system includes 9mm foam strip
  • Polythene vapour check
  • Ventilated skirting

Clip System

The Junckers Clip system delivers medium shock absorption and resilience and is perfectly suited for renovation projects that need low construction height. If installed on an even sub-floor, installation of a floating floor such as the Clip system couldn’t be simpler. Junckers 10mm thick Profoam underlay is rolled out over the sub-floor before the boards are simply joined together using Junckers` own clips. Fast and economical to install, it conforms fully to all the requirements of BSEN14904 A3. A 5mm thick foam is also available. Contact Junckers for details.

System Components

  • Construction height, including 22mm thick floorboard - 32mm
  • Installation on even sub-floor
  • 22 x 129 x 3700mm floorboards
  • Clips
  • Intermediate layer (5 or 10mm resilient foam)
  • Polythene vapour check
  • Header joint adhesive
  • Expansion strip / gap
  • Skirtings

NewEra UnoBat

The New Era UnoBat system is a packable fully sprung flooring system which can be installed over an uneven sub-floor. Extensive testing and development work has taken place over the last couple of years to improve the well established standard New Era levelling system to meet the new standards. This new system incorporates a black evazote polyethene foam rubber base for higher performance characteristics to the higher A4 level of the standard. The system comprises of a 22mm Junckers Press dried Beech board, secret nailed to a kiln-dried softwood batten, which is supported by foam backed strong polypropylene cradles. Fine levelling of the system takes place between the cradles and the battens. There are a range of heights available from 74mm to 439mm

UnoBat50

The Junckers UnoBat 50 batten system is the lowest elevation, high-performance undercarriage system offering a fully sprung floor to the highest demands and criteria. Fast and economical to install, it conforms fully to the requirements of BSEN14904 A4. It has a total construction height of only 50mm designed for installation over flat, level sub-floors. The system comprises of a 22mm Junckers Press dried Beech board secret nailed to a veneered softwood batten, which has a unique arrangement of specially developed rubber strips on the underside. The outer and inner strips differ in density and performance – low density on the outside and high density on the inside – to produce a 2 step absorption effect with a braking system, which delivers optimum shock absorption and consistent ball response.

*Choice of 2 different batten centres depending on requirements as to sports performance and loading capacity. Heavy loads can now be supported without compromising the performance of the floor.

System Components

  • Construction height, including 22mm thick floor board - 50mm
  • Installation on even sub-floor
  • 22 x 129 x 3700mm floorboards
  • 2.2 x 45mm J-nail (machine nail)
  • UnoBat 50 batten: 28 x 50 x 3600mm incl. resilient rubber strips
  • Polythene vapour check
  • Ventilated skirting

UnoBat 62+

The Junckers UnoBat 62+ single layer batten system is the second of the Junckers high-performance undercarriage systems, which can be packed, offering a fully sprung floor to the highest criteria. Fast and economical to install, it conforms fully to BSEN14904 A4. It has a minimum construction height of 62mm (plus levelling material) designed for installation over even or uneven sub-floors.

The system comprises of a 22mm Junckers Press dried Beech board secret nailed to a veneered softwood batten featuring unique shock absorption rubber pads, which in conjunction with the patented J-Lock connection system delivers high-performance sports and dance characteristics and enhanced durability. Junckers UnoBat 62+ offers the performance attributes necessary for fast-moving ball games while keeping the risk of injury at an absolute minimum.

Choice of 2 different batten centres depending on requirements as to sports performance and loading capacity. Heavy loads can now be supported without compromising the performance of the floor.

System Components

  • Minimum construction height, including 22mm thick floorboard-62mm
  • Installation on even or uneven sub-floor
  • 22 x 129 x 3700mm floorboards
  • 2.2 x 45mm J-nail (machine nail)
  • UnoBat 62+ batten system: 25.5 x 60 x 3600mm
  • J-Lock shock pad system
  • Packings
  • Polythene vapour check
  • Ventilated skirting

DupBat 110+

The Junckers DuoBat 110+ double layer batten system is the fourth of the new Junckers high-performance undercarriage systems offering a fully sprung floor to the highest criteria. Easy to install, it conforms fully to all the requirements of BSEN14904 A4. It has a total construction height of 110mm (plus levelling material) designed for installation over even or uneven sub-floors with fewer packing points than other double battened systems. The J-Lock system ensures a fast and secure connection between the upper and lower battens.

The system comprises of a 22mm Junckers press dried Beech board secret nailed to softwood veneered double battens featuring unique shock absorption rubber pads, which in conjunction with the patented J-Lock connection system delivers high-performance sports and dance characteristics and enhanced durability. The rubber pads never lose their elasticity.

Junckers DuoBat 110+ offers the performance attributes suitable for high-level gymnastics, dance, fast-moving ball games and aerobics while keeping the risk of injury at an absolute minimum.

System Components

  • Minimum construction height, including 22mm thick floorboard - 110mm
  • Installation on even or uneven sub-floor
  • 22 x 129 x 3700mm floorboards
  • 2.2 x 45mm J-nail (machine nail)
  • DuoBat 110+ batten system Upper batten: 25.5 x 60 x 3600mm
  • J-Lock shock pad system
  • Lower batten: 39 x 40 x 3364mm
  • Packings
  • Polythene vapour check
  • Ventilated skirtings

Portable system

The Junckers Portable floor system offers the ultimate flexibility for arenas and halls that play host to a wide variety of sporting and non-sporting events. In situations where specific line markings and logos are required, the Junckers Portable floor system provides the perfect solution. If installed over an even sub-floor, installation of a Junckers Pre-finished Portable solid Beech floor couldn’t be simpler.

Once the Junckers 5mm or 10mm thick underlay is in position, the panels are held securely in place by simple metal fittings that are just as easy to release when the floor is taken up. A ramped metal trim forms a strong and attractive edge. It has a total construction height of either 27mm or 32mm.

SilvaSquash

To meet the high demands made upon squash court floors Junckers has developed the highly successful SylvaSquash system. Given full accreditation by the SRA, England Squash and the WSF, the floor provides the player with the optimum playing surface in terms of shock absorption, resiliency, true and even ball response, light uniform colour and friction.

Extremely fast games such as squash need a surface with a high degree of friction. Junckers SylvaSquash is a solid Junckers 22mm thick Beech board of the Classic grade with a 45grit finish, which provides the high level of friction required by the sport. An unsealed finish is the first recommendation by the SRA, England Squash and the WSF. However, SylvaSquash is also available with one coat of polyurethane seal factory-applied as required. The Junckers BluBat and New Era systems are the preferred undercarriage systems for a squash floor. Because Junckers SylvaSquash is manufactured in uniform lengths, every board end is fully supported by a batten. This eliminates the possibility of board end breakages, a common problem with other "random strip" floors
